Up to 8 handlebar positions can be shifted forward and backward at a 5mm pitch. Fine adjustments can be made according to physique, skill level, riding style, etc. The front/rear adjustment range varies depending on the vehicle model.
One-piece type handlebar clamp is adopted. This dramatically improves rigidity and prevents twisting of the clamp when tipping over.

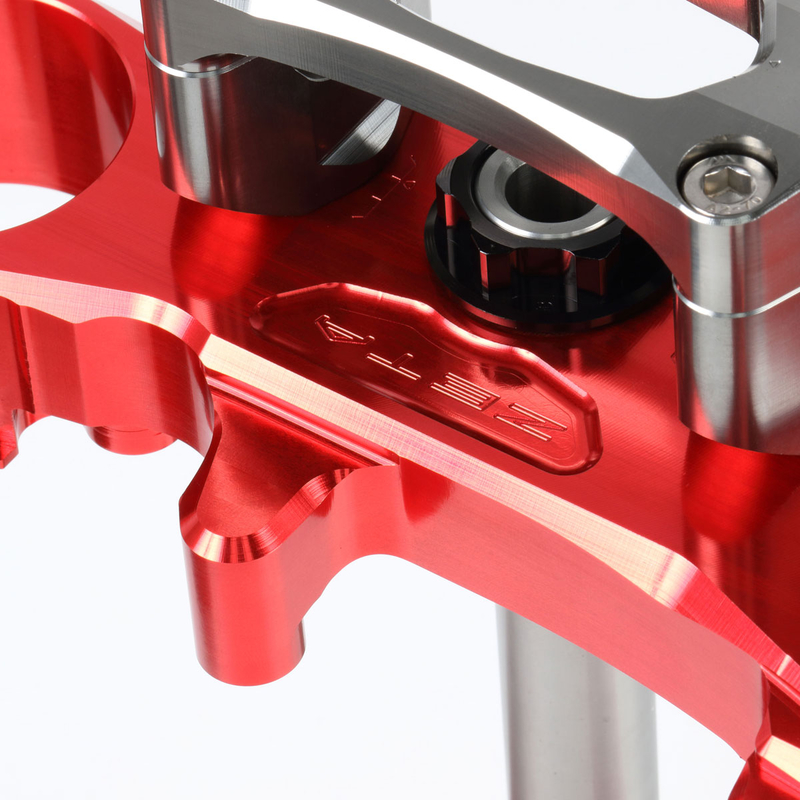

The thickness of each part and the height of the ribs have been changed. Even the smallest of details have been processed to reduce weight without sacrificing strength.
In case of CRF250L/RALY'12-20 and CRM250M'13-17
About -940g/30% lighter than the total weight of the stock product.
Fork clamp bolt mounting in the lateral direction reduces fork deformation and ZETA handguard mount side type, also facilitating the installation of the ZETA Handguard Mount.
The optional lower clamps allow the height of the bar mounts to be adjusted to a maximum of 32 different positions.

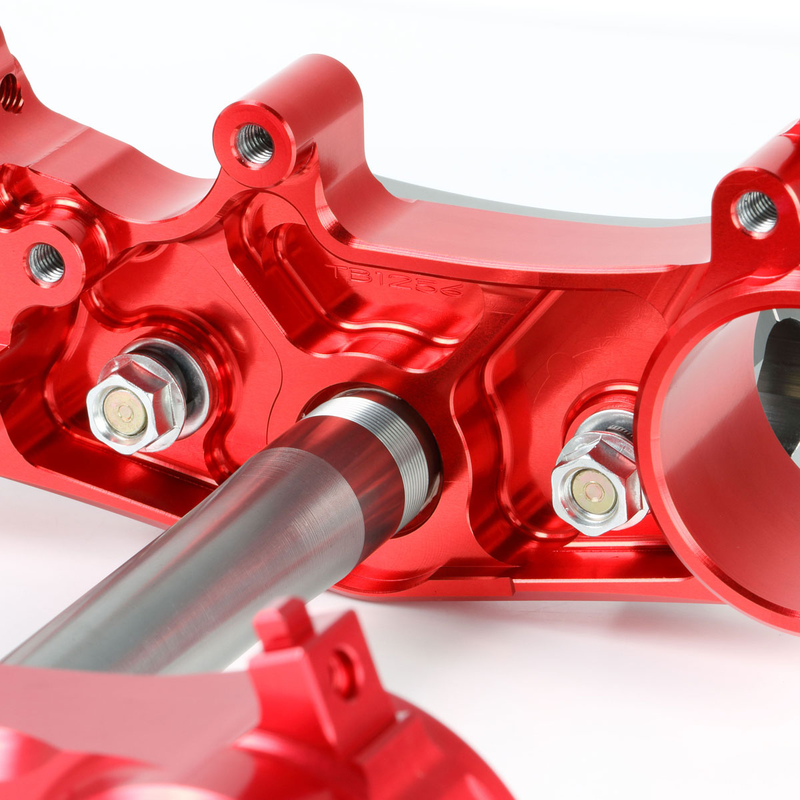

Fork clamp section has adequate thickness to increase fork fixing strength. The bolts are made of corrosion-resistant stainless steel.

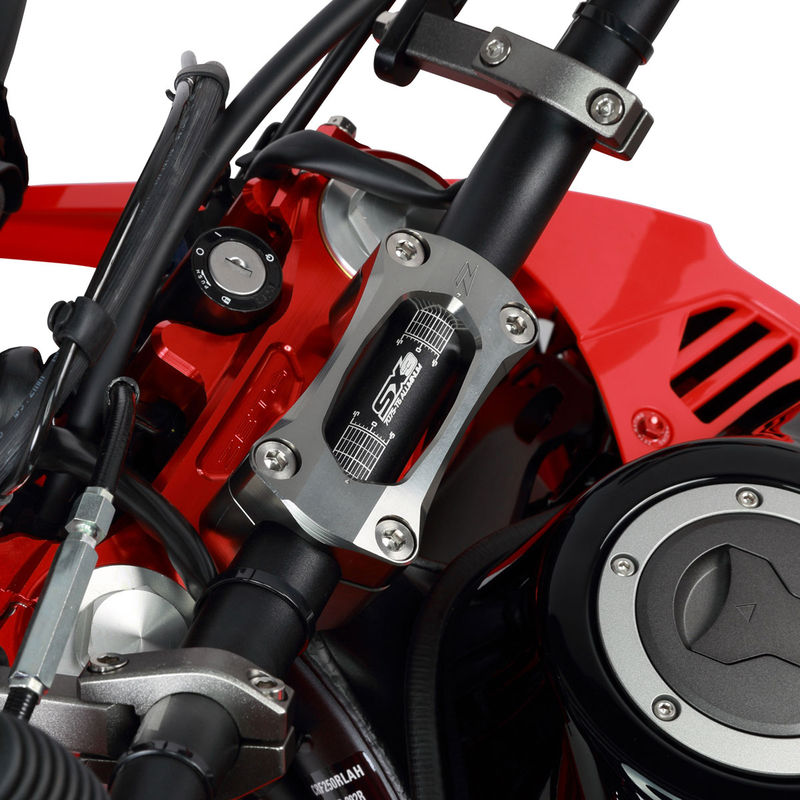

The handlebar clamp is secured with four special bolts. Tightening the two bolts on the front side first and then tightening the bolts on the rear side allows for more secure fixation of the handlebar.
| Marca | Modello | Anno |
|---|---|---|
|
Honda
|
CRF250L
|
2012-2020
|
|
Honda
|
CRF250L (MD47)
|
2021-2025
|
|
Honda
|
CRF250L(S) (MD47)
|
2021-2025
|
|
Honda
|
CRF250M
|
2013-2017
|
|
Honda
|
CRF250RALLY
|
2017-2020
|
|
Honda
|
CRF250RALLY (MD47)
|
2021-2025
|
|
Honda
|
CRF250RALLY(S) (MD47)
|
2021-2025
|
|
Honda
|
CRF300L
|
2021-2024
|
|
Honda
|
CRF300RALLY
|
2021-2024
|
